Old 9th-November-2012, 09:14 PM   #1
kimrobertson

kimrobertson's Avatar

Title: Nova Guru
iTrader: (1)
Status: Offline
Join Date: Nov 2010
Location: Ephrata, PA
Nova(s): 79 Phoenix
Posts: 1,048
Question Am I Missing Something Here?

My front seatbelt/shoulder harness setup has no guide from where they mount on the floor just behind the driver'sseat. It's just bolted on and hanging. I have gotten the guides for the top of the headrests (not installed yet) but wonder if I'm supposed to have guides from the back floor too. Anyone know if I should have these? If so any pictures of what they look like? What years would work right in my 79? I've included 2 pictures of my setup-one from inside and one from outside.

FROM INSIDE
[/IMG]
FROM OUTSIDE
[/IMG]
  Reply With Quote
Sponsored Links
Advertisement

Old 9th-November-2012, 11:03 PM   #2
mg79

Title: Nova Junior Member
iTrader: (2)
Status: Offline
Join Date: Oct 2010
Location: Glendale, AZ
Nova(s): 1979 Nova
Posts: 96
Checked my 79. There isn't a guide. The shoulder belt goes up from the floor, through the headrest guide, then to the roof. Sorry no pics, but looks just like yours.

Hope this helps.
Mike
  Reply With Quote
Old 9th-November-2012, 11:21 PM   #3
racerex1

racerex1's Avatar

Title: Nova Senior Member
iTrader: (1)
Status: Offline
Join Date: Jun 2006
Location: Godfrey il
Nova(s): 78 SS Clone
Posts: 228
My 78 is the same as yours.
  Reply With Quote
Old 10th-November-2012, 07:03 AM   #4
kimrobertson

kimrobertson's Avatar

Title: Nova Guru
iTrader: (1)
Status: Offline
Join Date: Nov 2010
Location: Ephrata, PA
Nova(s): 79 Phoenix
Posts: 1,048
Okay that's good to know. Thanks guys!
  Reply With Quote
Old 10th-November-2012, 10:31 AM   #5
1977Chad350

1977Chad350's Avatar

Title: Moderator
iTrader: (3)
Status: Offline
Join Date: Feb 2004
Location: panama city, fl
Nova(s): 1977 Nova 1978 Nova
Posts: 3,031
I just went out and looked at mine. Yours looks the same. My bolts are painted black where it bolts to the floor.
__________________
1978 Nova 2 door Gen V 454 crate engine 350th Transmission 8.5 10 bolt locker
1977 Nova 2 door coupe
  Reply With Quote
Old 11th-November-2012, 11:27 AM   #6
dlezama

dlezama's Avatar

Title: Nova Senior Member
iTrader: (2)
Status: Offline
Join Date: Nov 2010
Location: Mexico
Nova(s): 76Concours 77MalibuRally
Posts: 484
I believe Philip once xplained that the 78 and 79 are bolted direct to the rocker as yours. Prior to 78 there was one retractor on top and another on the floor. The headrest or seat-side guide is just there to keep it tidy and easy to reach without twisting back. Its also useful if you have the original seat adjuster plate (the plastic transparent one), as it butts with the guide when in use and prevents the belt from chafing your neck or shoulders.
  Reply With Quote
Old 11th-November-2012, 03:04 PM   #7
kimrobertson

kimrobertson's Avatar

Title: Nova Guru
iTrader: (1)
Status: Offline
Join Date: Nov 2010
Location: Ephrata, PA
Nova(s): 79 Phoenix
Posts: 1,048
Quote:
Originally Posted by dlezama View Post
I believe Philip once xplained that the 78 and 79 are bolted direct to the rocker as yours. Prior to 78 there was one retractor on top and another on the floor. The headrest or seat-side guide is just there to keep it tidy and easy to reach without twisting back. Its also useful if you have the original seat adjuster plate (the plastic transparent one), as it butts with the guide when in use and prevents the belt from chafing your neck or shoulders.
Okay thanks Daniel. I know its on the solid piece with the recessed hole in it but is there a particular position those guides/retainers screw onto the headrest? Any pictures?
  Reply With Quote
Old 11th-November-2012, 08:45 PM   #8
dlezama

dlezama's Avatar

Title: Nova Senior Member
iTrader: (2)
Status: Offline
Join Date: Nov 2010
Location: Mexico
Nova(s): 76Concours 77MalibuRally
Posts: 484

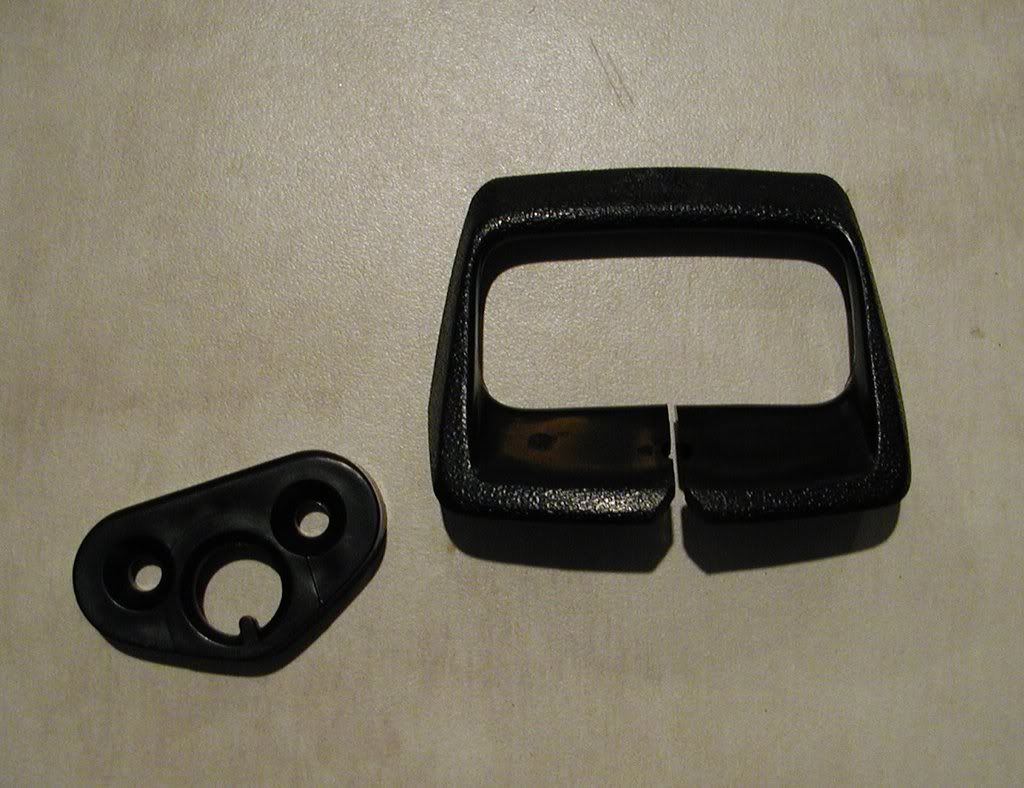

Do you mean you have the bases already on? You first have to slip the guide on the belt in the correct side of the guide. Then ust snap in the guides with the belts inside them in the big hole, with the leading edge of the guide to the front of the car.

If the guide is tight, youre good. If the guide is loose and snaps easily off, you have to insert a very small Philips screw in the little hole in the middle to open it up slightly. I believe this depends on a slight variation in plastic manufacturing quality.

To remove guide, carefuly pry it off with a small flat screwdriver.

Check the Nova catalogue for 76 and 77 they have pretty good pics. They have them at novaresource.com

Last edited by dlezama; 11th-November-2012 at 08:53 PM.
  Reply With Quote
Old 12th-November-2012, 09:00 PM   #9
kimrobertson

kimrobertson's Avatar

Title: Nova Guru
iTrader: (1)
Status: Offline
Join Date: Nov 2010
Location: Ephrata, PA
Nova(s): 79 Phoenix
Posts: 1,048
Thanks Daniel! Looked it over and see what you mean. Also found a couple helpful pictures on google. It didn' t have any guides at all when I bought the car so I bought new ones and wasn't sure how they go on. Now I see. Question: Once installed, is the guide supposed to pivot slightly as the shoulder harness is moved or just be stationary?
  Reply With Quote
Old 12th-November-2012, 09:13 PM   #10
Philip

Philip's Avatar

Title: Moderator
iTrader: (12)
Status: Offline
Join Date: Mar 2004
Location: Marana AZ 85653
Nova(s): 1977
Posts: 10,260
It will pivot a little normally. There is a stop on it.

__________________
  Reply With Quote
Old 12th-November-2012, 09:40 PM   #11
kimrobertson

kimrobertson's Avatar

Title: Nova Guru
iTrader: (1)
Status: Offline
Join Date: Nov 2010
Location: Ephrata, PA
Nova(s): 79 Phoenix
Posts: 1,048
Quote:
Originally Posted by Philip View Post
It will pivot a little normally. There is a stop on it.


Okay thanks Philip...I didn't realize there was a stop.
